- One, product use;

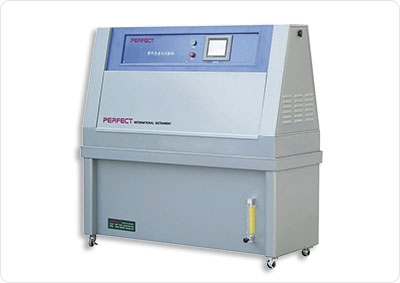

UV is the main reason for the degradation of almost all of the materials exposed to the outdoors. QUV UV aging test machine to simulate the ultraviolet part of the sun's light, UVA-340 lamp can best simulate the short wavelength of the sun light. It is especially suitable for comparing the performance difference between different kinds of polymer and stabilizer. It is the best light tube used in the study of material dependence.
Meet standards:
GB/T16422.3-1997 GB/T16585-96 ASTM D4329 D499 D4587 D5208 G154 G53 ISO 4892-3 ISO EN534 11507 PREN 1062-4 BS JIS 2782 D0205 SAE J2020 GB/T14522-93
Two, features:
It adopts the man-machine screen automatic control system
The machine is provided with condensation, exposure, spray, temperature and humidity function
The imported QUV lamp in accordance with international testing requirements
We developed efficient irradiation display and automatic adjustment function
The built-in automatic water filtration system and automatic water supply device
The machine multiple alarm detection, the configuration of the wireless remote alarm function
Technological innovation

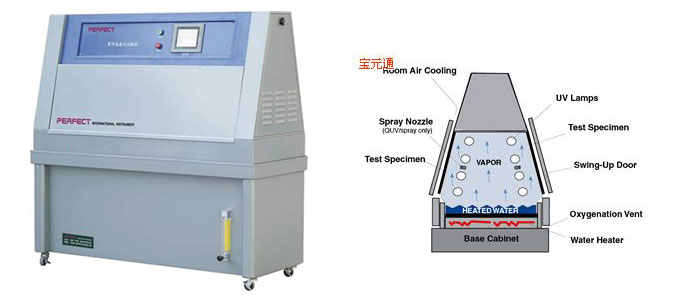

QUV provides two kinds of wet simulation method. It is the best method for simulating the outdoor wet erosion by using the most of the condensation method. All of the QUV models are available for the operation of the condensing cycle. Because some of the application conditions are also required to use water spray to achieve the actual effect, so some of the QUV model can not only run the condensing cycle and running water spray cycle.
Model
QUV-1
QUV-2
QUV-3
Function
UV exposure
√
√
√
Condensation
√
Irradiance display
√
Irradiance regulation
√
√
√
Water spray
√
√
Thermal shock
Bar chart recorder
（Optional）
（Optional）
（Optional）
Temperature range
UV temperature
+40～+85℃
+40～+95℃
+40～+85℃
Condensing temperature
+40～+60℃
+40～+60℃
Volume
137×53 ×135cm
137×53 ×135cm
137×53 ×135cm
Weight
136kg
136kg
136kg
Test capability
48 block model
（75×150mm）48 block model
（75×150mm）48 block model
（75×150mm）Power supply and power
230V/50H
1800W（Maximum）
230V/50H
1500W（Maximum）230V/50H
1800W（Maximum）Water supply and consumption
Condensation: tap water
or distilled water
About 8 liters / day
Condensation: tap water or distilled water
About 8 liters / day
Spray: distilled water or distilled water
About 7 liters / minute
Lamp dosage
Depending on the irradiation time
Depending on the irradiation time
About 24 / year
Optional lamp model
The United States
Q-lab original UVA340,
UVB313L optional 4
（The United States Q-lab original
UVA340, UVB313L optional 4）
（The United States Q-lab
original UVA340, UVB313L optional 8）
Optional lamp model： UVB313EL、UVA340。
Remarks
For the light tube selection, we provide Q-labUVA340, UVB313 lamp, in principle, the aging effect of UVB-313 is faster and more obvious than UVB-340, but in the corresponding weather resistance test UVB-340 is better than UVB-313. This depends on the customer's experimental test time on the force of cutting and harsh and set.
